Why proper pressure gauge selection prevents failures, downtime, and safety risks

Pressure gauges are among the most common instruments in industrial settings, yet they are also among the most frequently misapplied. According to experts from Relevant, most gauge failures do not stem from defective products. They stem from improper selection. In a recent conversation, product managers and business development specialists from Wika, Ashcroft, ReoTemp, and Dwyer walked through the fundamentals of gauge selection, explaining how a straightforward checklist can prevent inaccurate readings, equipment damage, costly downtime, and serious safety incidents.

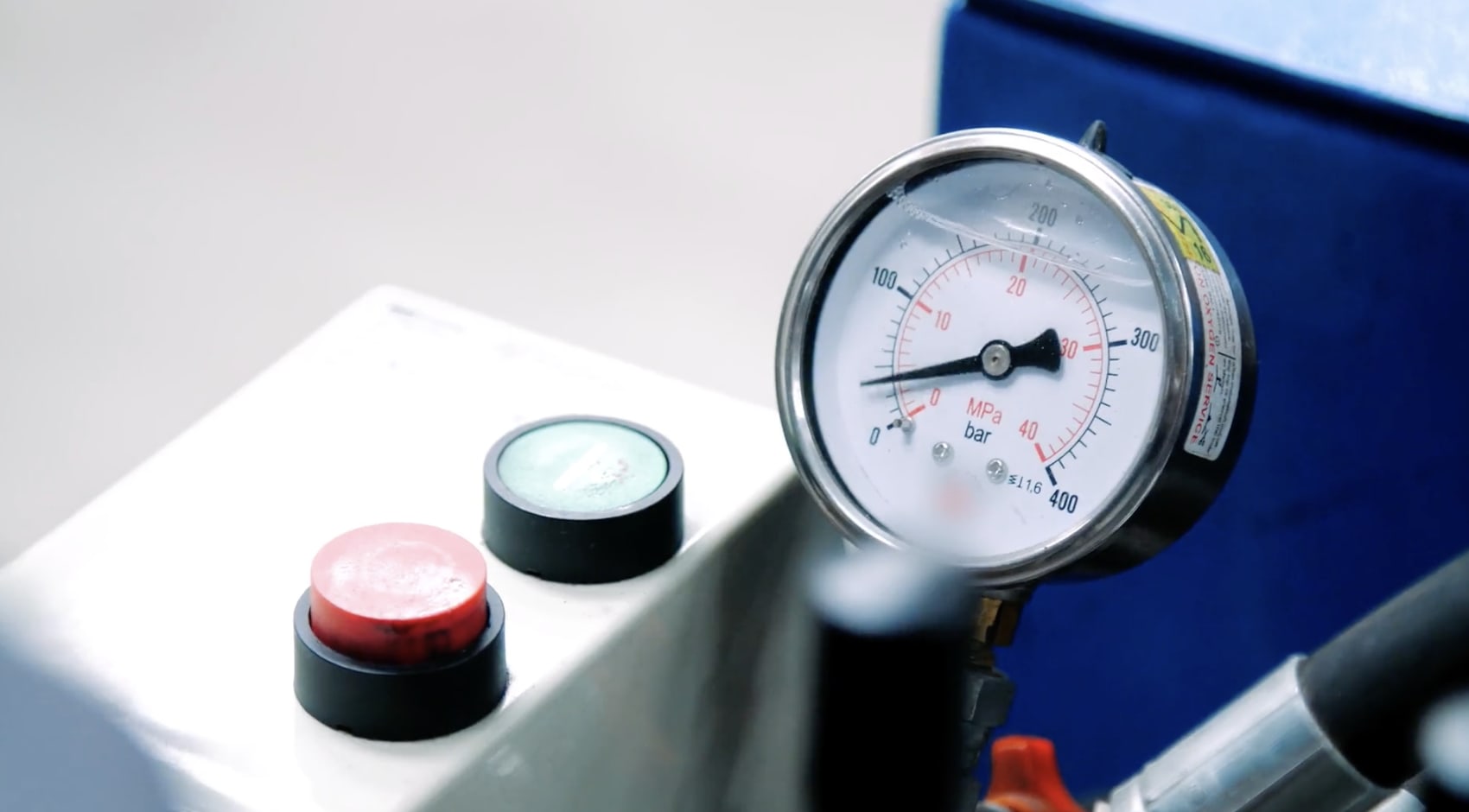

At its core, a pressure gauge is a device that measures pressure inside a system, whether the medium is air, gas, water, oil, steam, or chemicals. The two most common styles are analog dial gauges and digital gauges, and they appear across compressors, pumps, filtration systems, and nearly every other process application. The problem, as the panelists made clear, is that selecting any gauge is not the same as selecting the right gauge.

Five factors that determine the right gauge

The panel identified five key selection criteria: pressure range, media compatibility, environmental conditions, accuracy requirements, and connection type. Pressure range is where many buyers go wrong first. The operating pressure of a system should fall within the middle portion of the gauge's full scale, roughly 25 to 75 percent. As Gary Woods of Wika explained, if a system runs at 100 PSI, a 160 PSI gauge is a far better choice than a 100 PSI gauge. Running a gauge at its upper limit accelerates wear and leaves no margin for pressure spikes.

Media compatibility is equally critical. Air and water are straightforward, but corrosive or aggressive media require stainless steel internals, diaphragm seals, or carefully chosen wetted materials. The panel offered a blunt illustration of what happens when this step is skipped: "Nothing humbles a person faster than installing the wrong material gauge and watching it age fifteen years in two weeks." Environmental conditions compound the challenge. High-vibration applications call for liquid-filled gauges, which can dramatically extend service life. Without liquid fill, pointer movement becomes so severe that gauge failure is almost immediate. A common real-world example raised by the group was dry gauges installed on compressed air systems, where vibration and pulsation cause rapid failure that gets mistaken for a defective product.

Accuracy requirements depend on the application. General-purpose accuracy is adequate for most industrial uses, but calibration systems, laboratories, and critical process applications demand higher precision. Greg Lewis of Ashcroft put it plainly: "If your process requires precision, this is not the time for close enough. That works for horseshoes, not instrumentation." Finally, connection type, including thread size and mounting style, must be verified before installation. Bottom mount, back mount, and panel mount configurations each serve different needs, and assuming a standard quarter-inch NPT connection without checking is the kind of shortcut that creates safety risks.

Common mistakes and practical pro tips

The panelists catalogued the errors they see most often: choosing too narrow a pressure range, ignoring vibration and skipping liquid-filled gauges, using materials incompatible with the process media, and underestimating accuracy requirements. One pattern stood out as particularly costly: replacing the same failed gauge multiple times without addressing the root cause of the failure. That cycle wastes time, labor, and money while leaving the underlying problem unresolved.

To avoid those pitfalls, the group offered several practical recommendations. Installing snubbers or pulsation dampeners helps manage extreme pressure swings. Adding an isolation valve makes future maintenance and gauge replacement significantly easier. When operators consistently struggle to read analog gauges, switching to digital displays eliminates misreading and the ambiguity of estimating a needle position. The closing message from the panel was concise: proper gauge selection comes down to range, media, and environment. Matching those three factors to the right product, whether from Wika, Ashcroft, ReoTemp, Dwyer, or another manufacturer, is what keeps systems running accurately, safely, and without unplanned interruptions.
